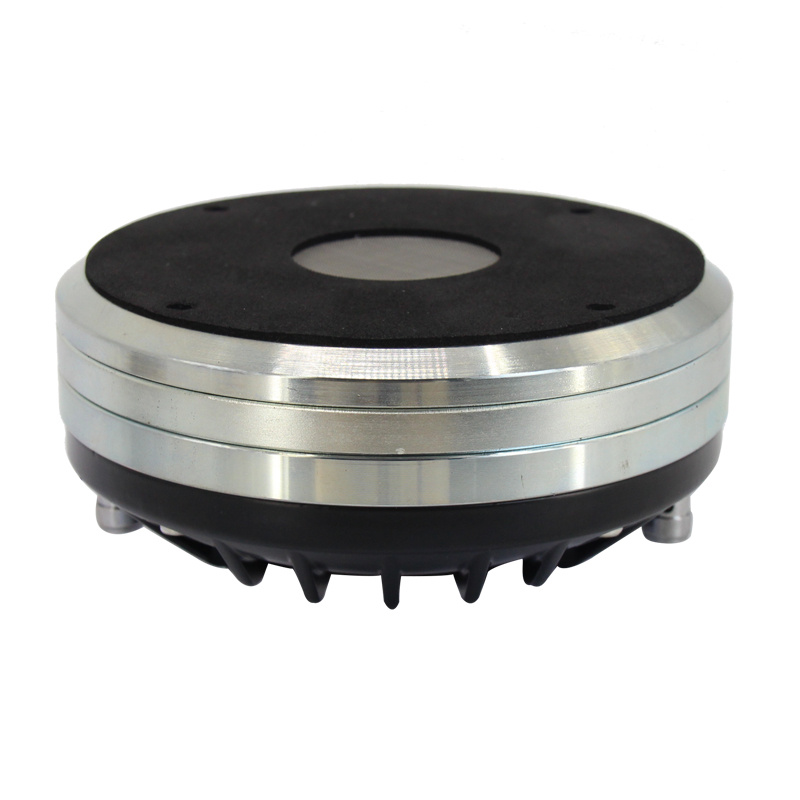

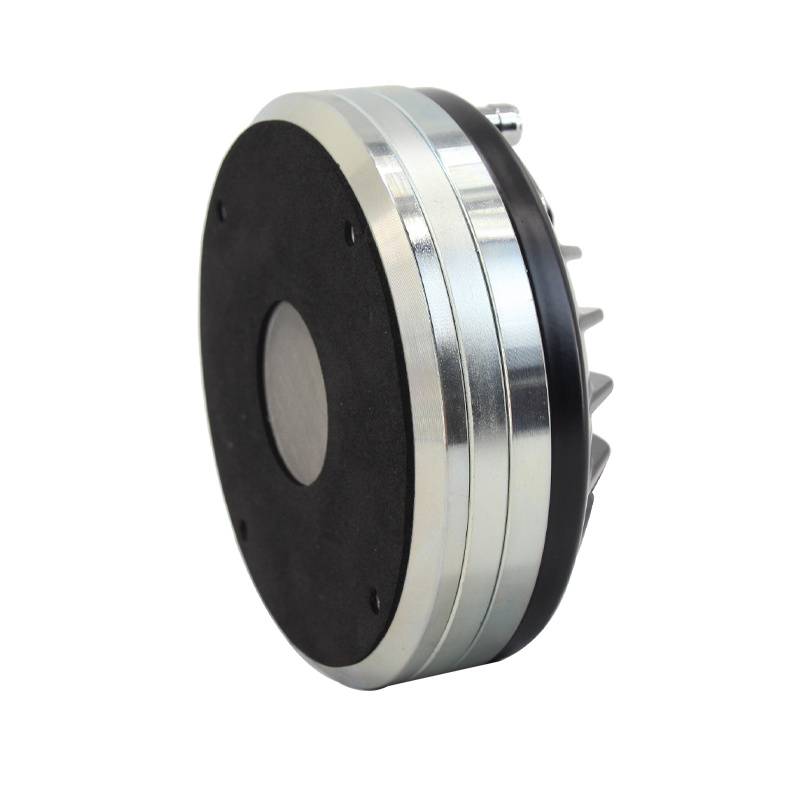

TN-DE880TN

TN-DE880TN

HF Drivers - Neodymium

110

Watts RMS

500hz-18khz

Response

108dB

Sensitivity

Nominal impedance

MOUNTING/SHIPPING INFORMATION
Overall Diameter 4.9/124   in/mm
Depth 2.3/58   in/mm
Net Weight 2. 2 kg
Shipping Weight(1 pc) 2. 3 kg
Shipping Box(1 pc) 13X13X6.7cm
ELECTRO ACOUSTIC SPECIFICATIONS
Throat Diameter 1.5/38  in/mm
MAX Power 220 Watts
RMS Power 110  Watts
Impedance 8 Ohm
Frequency Response 500 Hz-18k Hz
Sensitivity(1W/1m) 108 dB
Voice Coil Diameter 3"/74.4mm
Windling material CCAR
Magnet Neodymium
Diaphragm material Titanium  diaphragm
