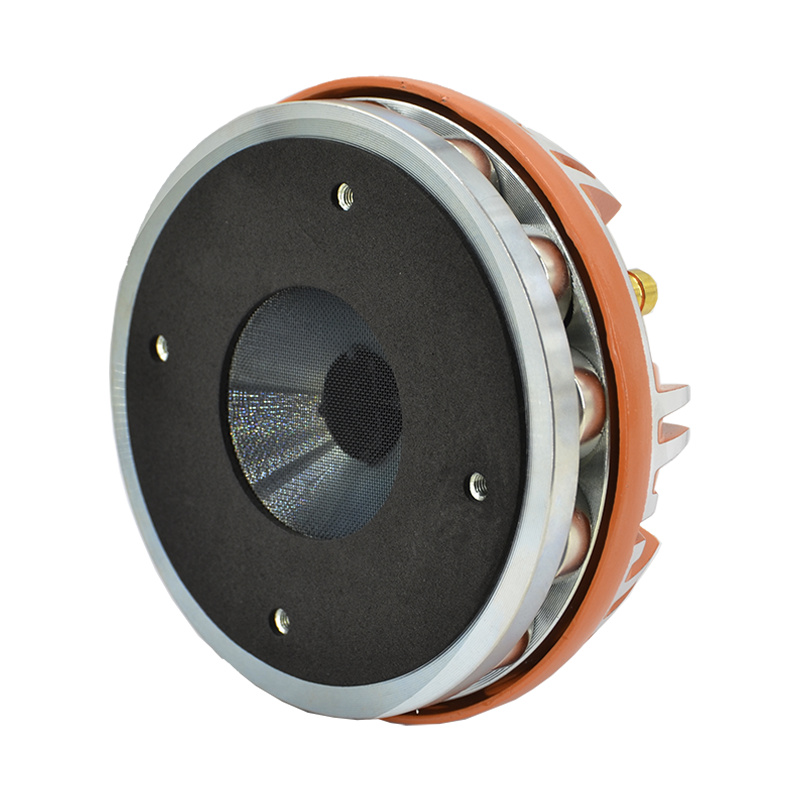

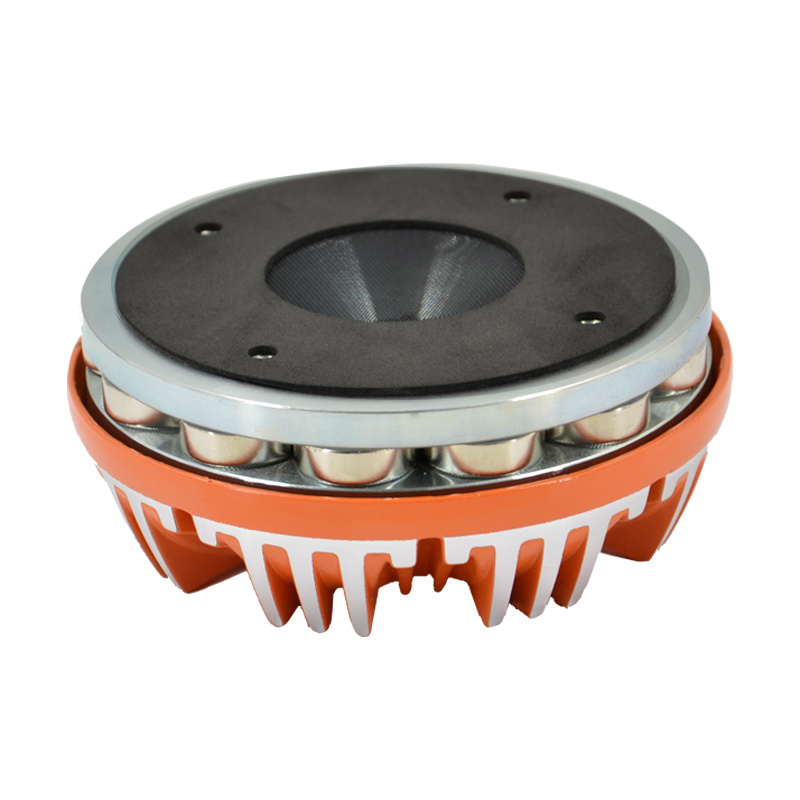

TN-ND510

TN-ND510

HF Drivers - Neodymium

80

Watts RMS

1KHZ-20KHZ

Response

108dB

Sensitivity

Nominal impedance

MOUNTING/SHIPPING INFORMATION
Overall Diameter 5.3/134   in/mm
Depth 2. 1/53   in/mm
Net Weight 2.0 kg
Shipping Weight(1 pc) 2. 2 kg
Shipping Box(1 pc) 15X15X6. 5 cm
ELECTRO ACOUSTIC SPECIFICATIONS
Throat Diameter 2/50  in/mm
MAX Power 160 Watts
RMS Power 80  Watts
Impedance 8 Ohm
Frequency Response 1k Hz-20k Hz
Sensitivity(1W/1m) 108 dB
Voice Coil Diameter 2"/51. 6mm
Windling material CCAW
Magnet Neodymium
Diaphragm material Titanium  diaphragm
