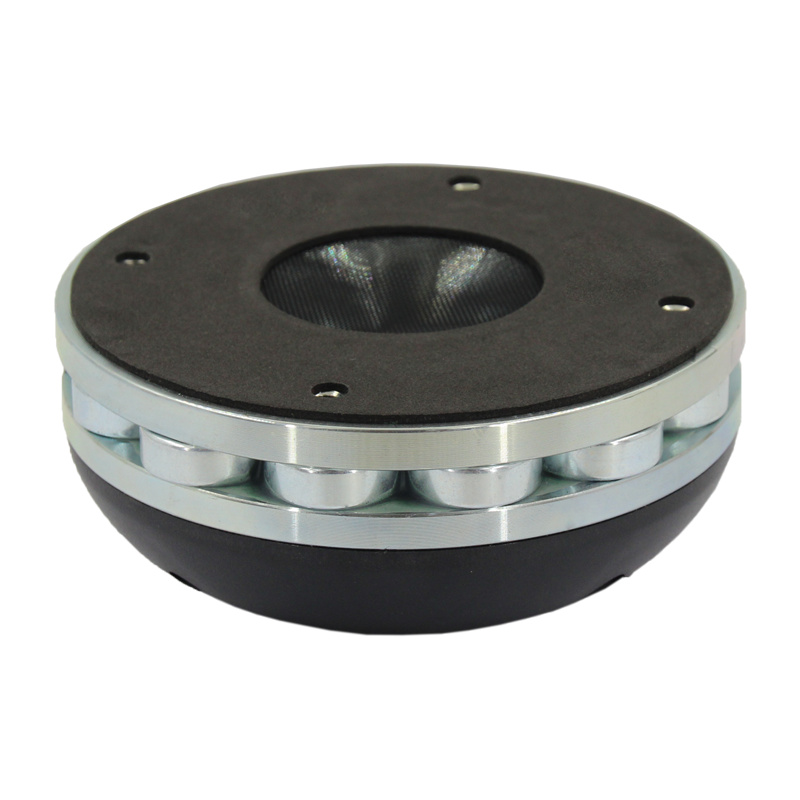

TN-ND5210

TN-ND5210

HF Drivers - Neodymium

80

Watts RMS

1khz-20khz

Response

108dB

Sensitivity

Nominal impedance

MOUNTING/SHIPPING INFORMATION
Overall Diameter 4. 9/126   in/mm
Depth 2. 2/55    in/mm
Net Weight 1. 8 kgs
Shipping Weight(1 pc) 1. 9 kgs
Shipping Box(1 pc) 13. 5X13. 5X6. 5cm
ELECTRO ACOUSTIC SPECIFICATIONS
Throat Diameter 2/50  in/mm
MAX Power 160 Watts
RMS Power 80 Watts
Impedance 8 Ohm
Frequency Response 1K Hz-20k Hz
Sensitivity(1W/1m) 108dB
Voice Coil Diameter 2"/51. 6mm
Windling material CCAW
Magnet Neodymium
Diaphragm material Titanium diaphragm
