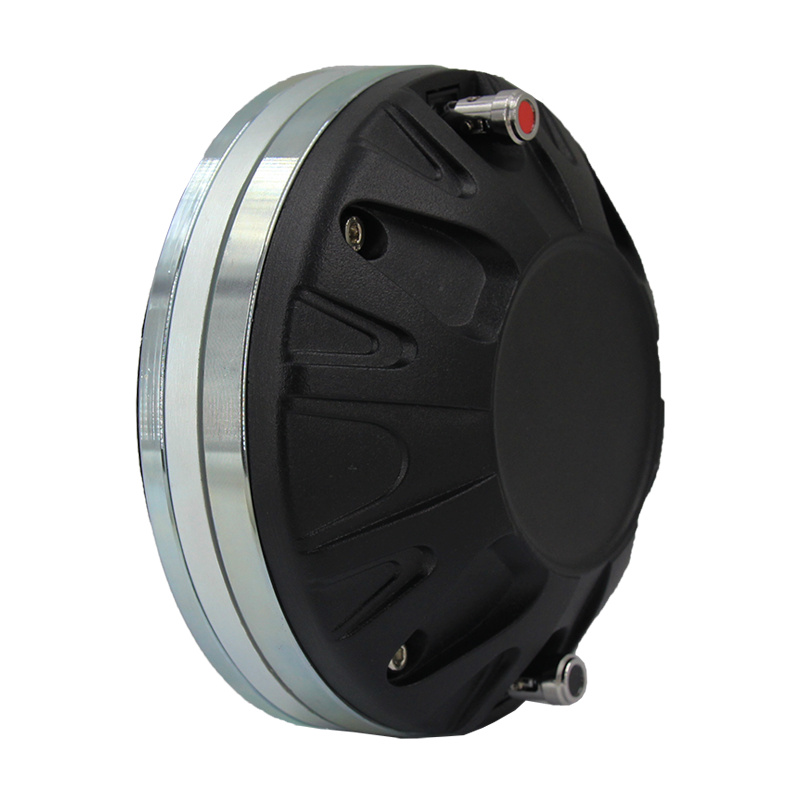

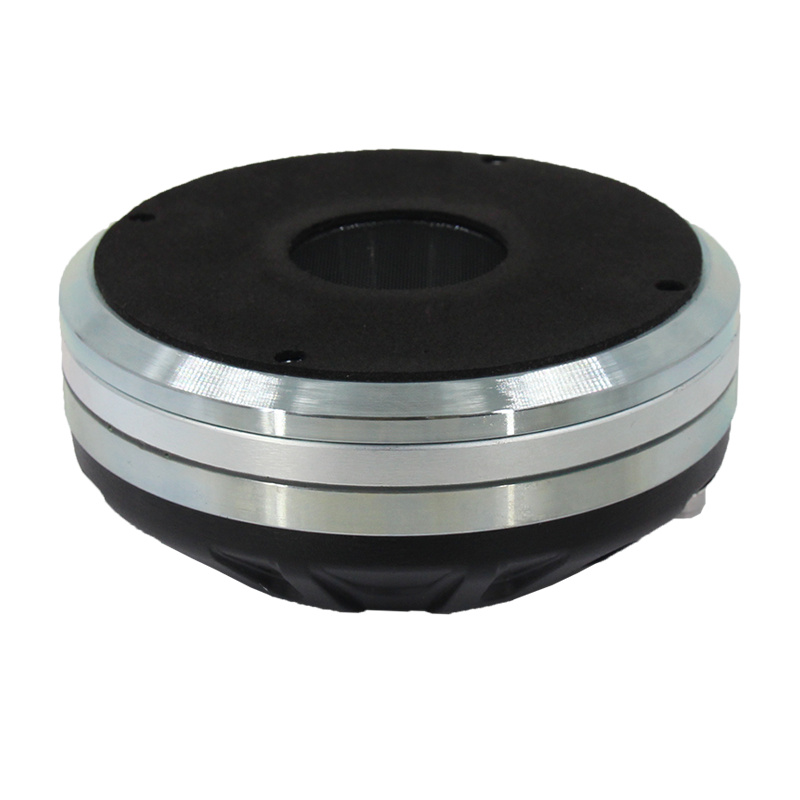

TN-NX7210

TN-NX7210

HF Drivers - Neodymium

100

Watts RMS

800HZ-18KHZ

Response

106dB

Sensitivity

Nominal impedance

MOUNTING/SHIPPING INFORMATION
Overall Diameter 4.9/124   in/mm
Depth 2.3/58     in/mm
Net Weight 2. 2 kg
Shipping Weight(1 pc) 2. 3 kg
Shipping Box(1 pc) 13. 5X13.5X6. 5 cm
ELECTRO ACOUSTIC SPECIFICATIONS
Throat Diameter 1.5/38  in/mm
MAX Power 200 Watts
RMS Power 100  Watts
Impedance 8 Ohm
Frequency Response 800 Hz-18k Hz
Sensitivity(1W/1m) 106 dB
Voice Coil Diameter 3"/74. 4mm
Windling material CCAR
Magnet Neodymium
Diaphragm material Titanium diaphragm
